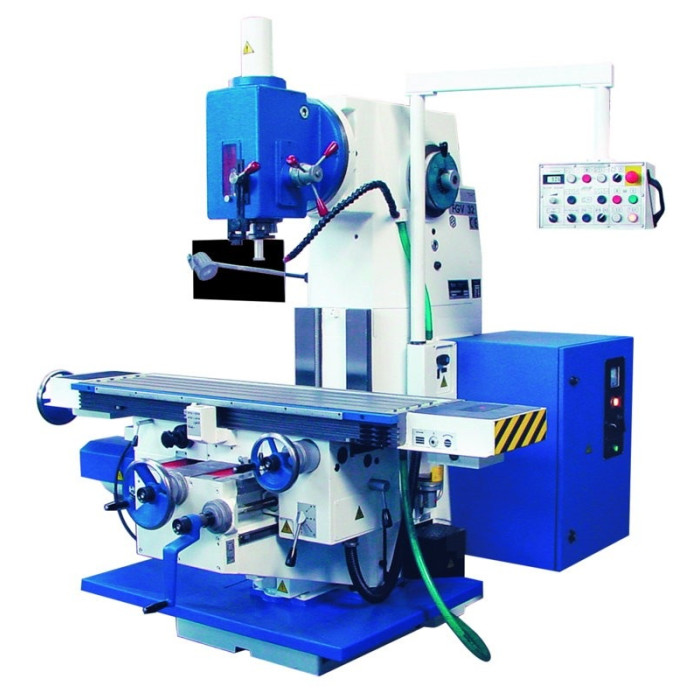

Vertical milling machine TOS FGV32
Out Of Stock
Product code: FGV32
Get consultation
Extended warranty
An additional 6 months warranty from our campaign
Extended warranty - we are confident in the quality of the products we supply, so we offer our customers an additional 6 months warranty from our company to the standard warranty period from the manufacturer. For the entire range, which you can find on our website.
Proven manufacturer
We were on the production floor and checked it out
Only tested equipment - we only supply equipment from manufacturers whose factories we have visited and made sure that their quality is worth your attention.
Professional service
We guarantee quality and prompt service
Professional service - our team provides quality service at all stages of your equipment's life: installation and setup, warranty and post-warranty service and repair.
Characteristics
Vertical milling machine TOS FGV32
Brand
TOS Olomouc
Manufacturer model
FGV32
Country of origin of the brand
Czech Republic
Machine type
Vertical milling machine
Table width, mm
360
Table length, mm
1400
Spindle end
ISO50
Spindle power, kW
5.5
Min. spindle rotation speed, rev/min
31.5
Max. spindle rotation speed, rev/min
1400
Number of spindle rotation speeds
12
Quill travel, mm
75
X-axis travel, mm
1000
Y-axis travel, mm
300
Z-axis travel, mm
420
Feed rate X axis, mm/min
900
Feed rate Y axis, mm/min
900
Feed rate Z axis, mm/min
250
Rapid traverse X axis, mm/min
1635
Rapid traverse Y axis, mm/min
1635
Rapid traverse Z axis, mm/min
460
Distance from the axis of the spindle to the guide, mm
370
Number of T-slots
4
T-slot size, mm
18
Distance between T-slots, mm
63
Max spindle tilt angle, °
45
Power supply, V
380
Dimensions (L), mm
2900
Dimensions (W), mm
2000
Dimensions (H), mm
2100
Net weight, kg
2860
