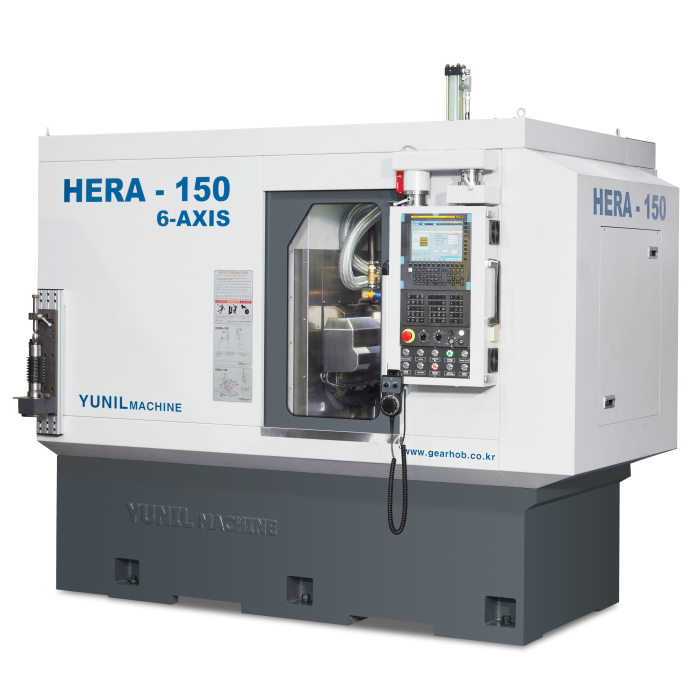

Gear milling machine YUNIL HERA-150
Pre-Order
Product code: HERA-150
Get consultation
Extended warranty
An additional 6 months warranty from our campaign
Extended warranty - we are confident in the quality of the products we supply, so we offer our customers an additional 6 months warranty from our company to the standard warranty period from the manufacturer. For the entire range, which you can find on our website.
Proven manufacturer
We were on the production floor and checked it out
Only tested equipment - we only supply equipment from manufacturers whose factories we have visited and made sure that their quality is worth your attention.
Professional service
We guarantee quality and prompt service
Professional service - our team provides quality service at all stages of your equipment's life: installation and setup, warranty and post-warranty service and repair.
Characteristics
Gear milling machine YUNIL HERA-150
Machine weight, kg
7800
Main engine power, kW
5,5
Maximum diameter of the gear cutter, mm
120
Maximum length of the gear cutter, mm
200
Maximum module, mm
3,5
Maximum offset of the gear cutter (Y axis), mm
170
Maximum processing diameter, mm
150
Maximum table rotation speed (C axis), rpm
600
Model
HERA-150
Radial movement of the gear cutter (X axis), mm
180
Table diameter, mm
150
Tailstock travel (Z2 axis), mm
300
Working table movement (Z1 axis), mm
250
