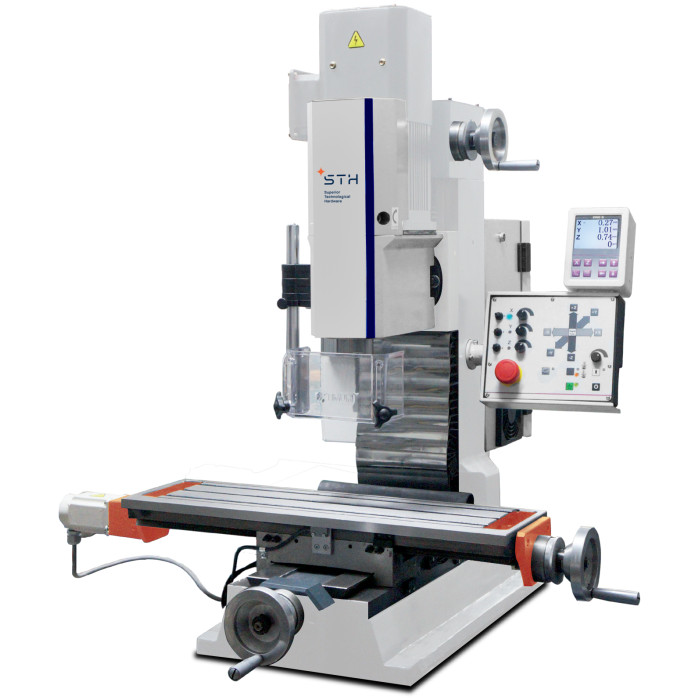

Desktop milling machine STH S-Mill Pro S18
Out Of Stock
Product code: S-Mill Pro S18
Get consultation
Extended warranty
An additional 6 months warranty from our campaign
Extended warranty - we are confident in the quality of the products we supply, so we offer our customers an additional 6 months warranty from our company to the standard warranty period from the manufacturer. For the entire range, which you can find on our website.
Proven manufacturer
We were on the production floor and checked it out
Only tested equipment - we only supply equipment from manufacturers whose factories we have visited and made sure that their quality is worth your attention.
Professional service
We guarantee quality and prompt service
Professional service - our team provides quality service at all stages of your equipment's life: installation and setup, warranty and post-warranty service and repair.
Characteristics
Desktop milling machine STH S-Mill Pro S18
Machine type
Bench milling
Table width, mm
180
Table length, mm
500
Spindle taper
MT2
Spindle power, kW
0.75
Min. spindle rotation speed, rev/min
100
Max. spindle rotation speed, rev/min
3000
Number of spindle rotation speeds
2
Quill travel, mm
50
X-axis travel, mm
280
Y-axis travel, mm
175
Z-axis travel, mm
210
Rassotoyanye from the table to the end of the spindle, mm
255
Distance from the axis of the spindle to the guide, mm
180
Number of T-slots
3
T-slot size, mm
12
Distance between T-slots, mm
63
Max spindle tilt angle, °
90
Max. diameter of drilling in steel, mm
16
Max face mill diameter, mm
52
Max end mill diameter, mm
20
Power supply, V
220
Dimensions (L), mm
800
Dimensions (W), mm
550
Dimensions (H), mm
800
Net weight, kg
95
