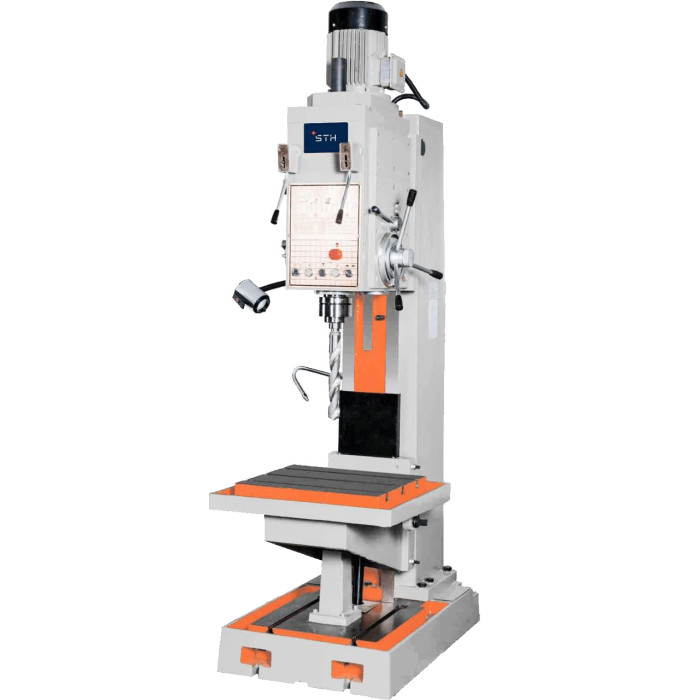

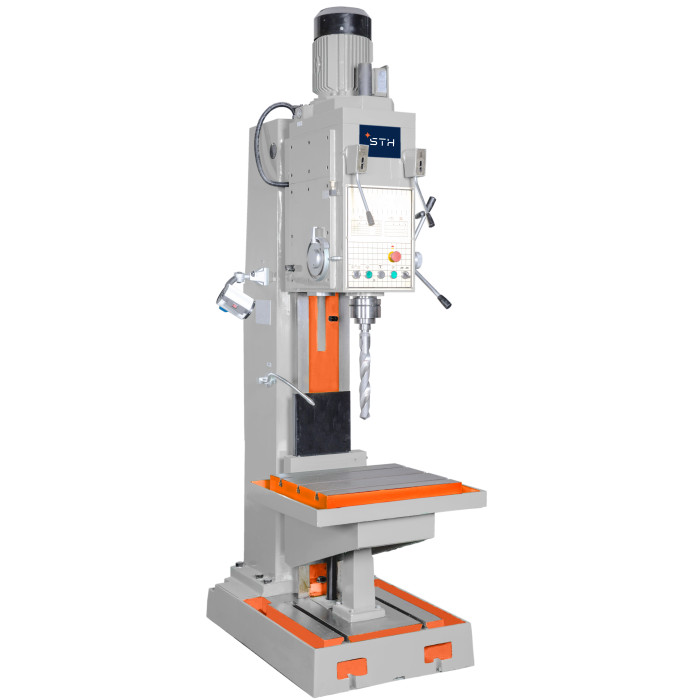

Vertical drilling machine STH S-Drill Pro H80
Out Of Stock
Product code: S-Drill Pro H80
Get consultation
Extended warranty
An additional 6 months warranty from our campaign
Extended warranty - we are confident in the quality of the products we supply, so we offer our customers an additional 6 months warranty from our company to the standard warranty period from the manufacturer. For the entire range, which you can find on our website.
Proven manufacturer
We were on the production floor and checked it out
Only tested equipment - we only supply equipment from manufacturers whose factories we have visited and made sure that their quality is worth your attention.
Professional service
We guarantee quality and prompt service
Professional service - our team provides quality service at all stages of your equipment's life: installation and setup, warranty and post-warranty service and repair.
Characteristics
Vertical drilling machine STH S-Drill Pro H80
Machine type
Vertical drilling machine
Accuracy rating
Normal
Max. diameter of drilling in steel, mm
80
Spindle taper
МТ6
Min. spindle rotation speed, rev/min
40
Max. spindle rotation speed, rev/min
570
Number of spindle rotation speeds
9
Spindle power, kW
7.5
Table width, mm
550
Table length, mm
650
Distance from the axis of the spindle to the guide, mm
375
Rassotoyanye from the table to the end of the spindle, mm
800
Spindle stroke, mm
250
Number of pitches
6
Min. working feed, mm/min
0,1
Max. working feed, mm/min
0.78
Power supply, V
380
Dimensions (L), mm
965
Dimensions (W), mm
1450
Dimensions (H), mm
2850
Net weight, kg
1850
Description
Vertical drilling machine STH S-Drill Pro H80
Vertical drilling machine STH S-Drill Pro H80
