Main Features
- The entire machine structure is welded and designed using ANSYS systems, ensuring high rigidity as well as reliable and precise operation of the press brake.
- The backgauge and ram drives are controlled by an inverter, allowing high positioning accuracy through frequency and voltage control of the motor.
- Axis X (backgauge) and axis Y (ram stroke) can be programmed via the controller, simplifying operator workflow.
- Side and rear metal safety guards are manufactured in accordance with European safety standards.
- System pressure can be easily adjusted using a pressure relay.
- The foot pedal switch with emergency stop button allows immediate shutdown of the press brake in emergency situations.

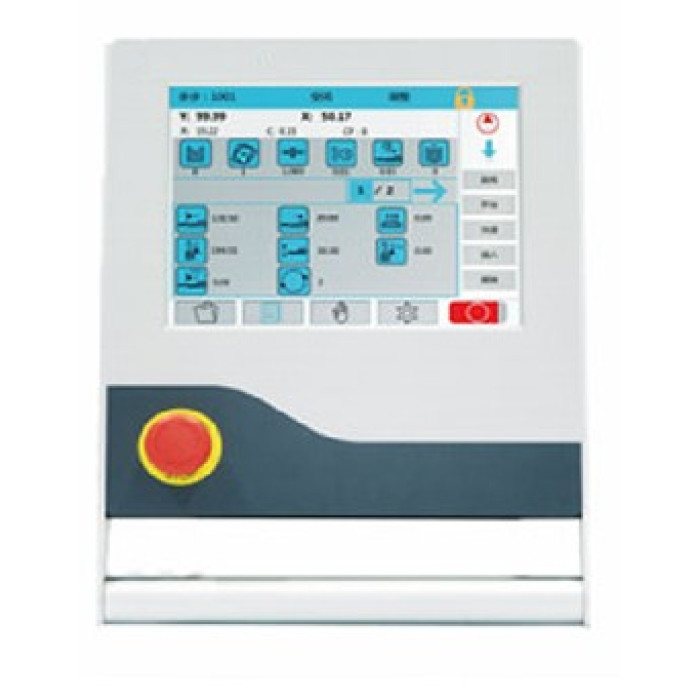

E315P Controller
- 10’’ touchscreen display.
- Supports up to 4 axes: X axis, Y axis, R axis and C axis (optional).
- Automatic calculation based on bending angle, material, thickness and tooling parameters.
- The backgauge can be controlled with high precision, as servo systems manage the X and R axes (optional).
- Material and die information can be programmed and stored in the controller library.
